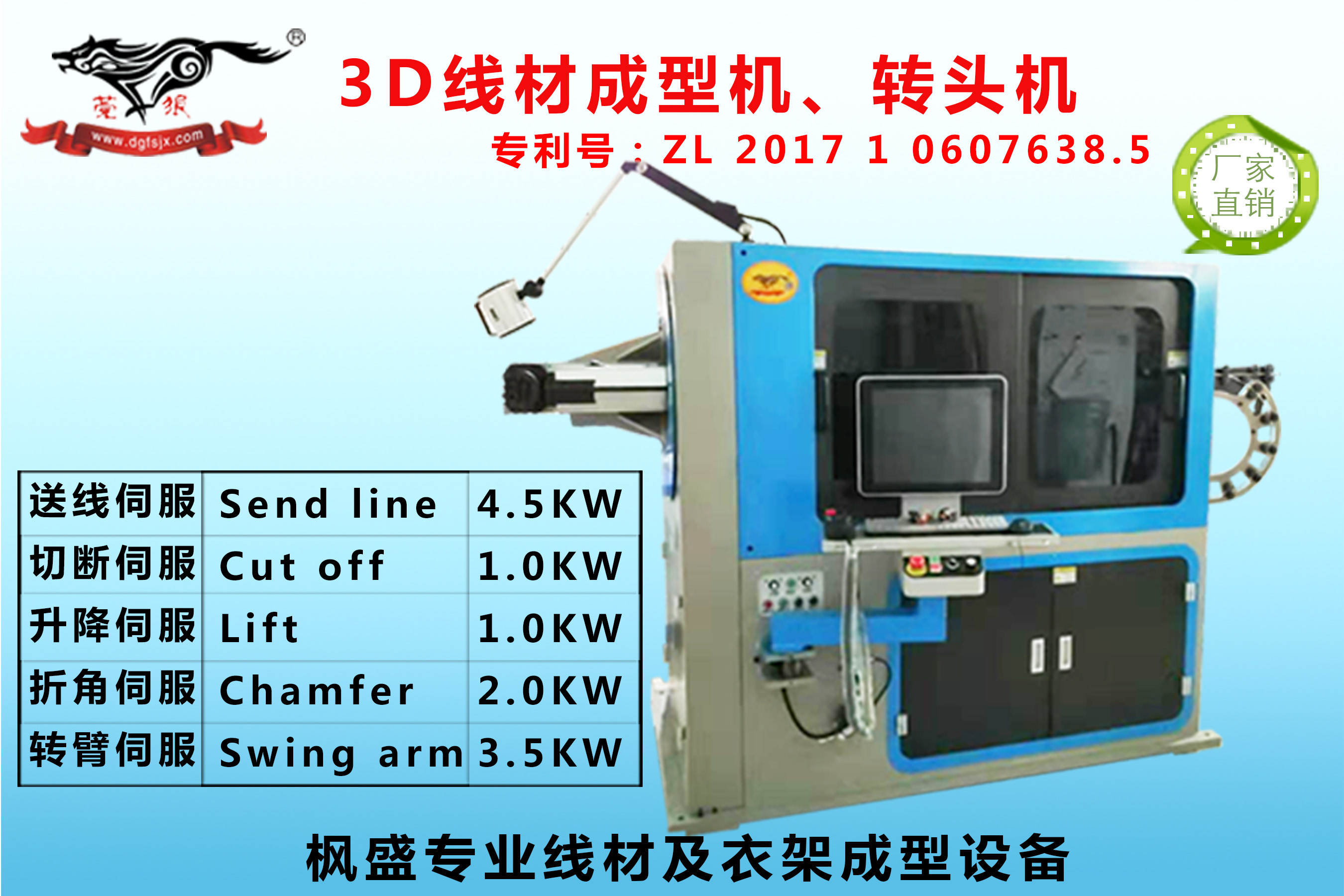

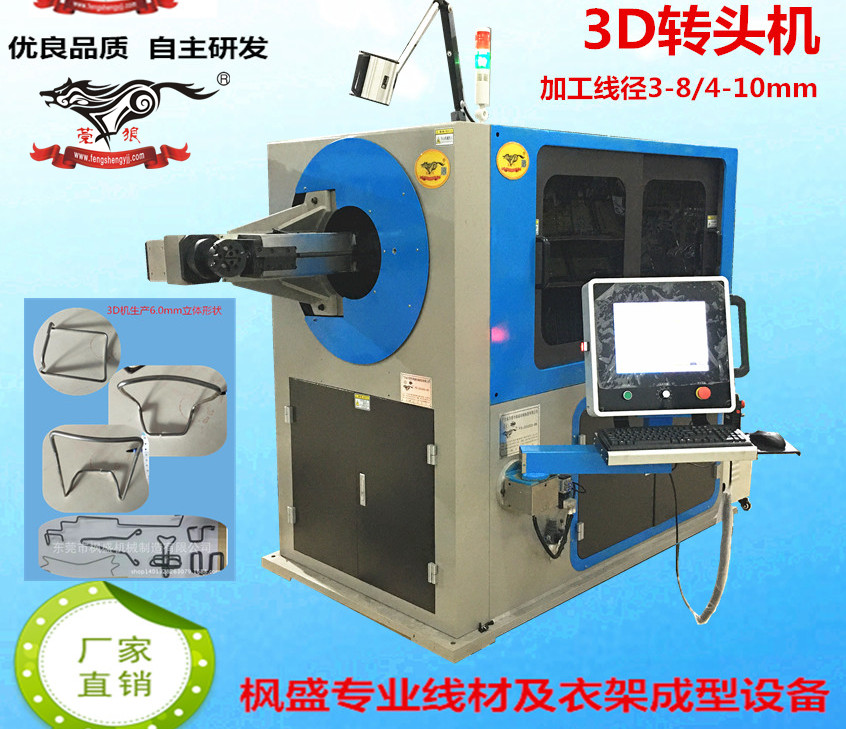

名稱: 楓盛轉頭式3D線材成型機FS-DG203-08
Technical parameters of Fengsheng wire rod forming
machine fs-dg203-08

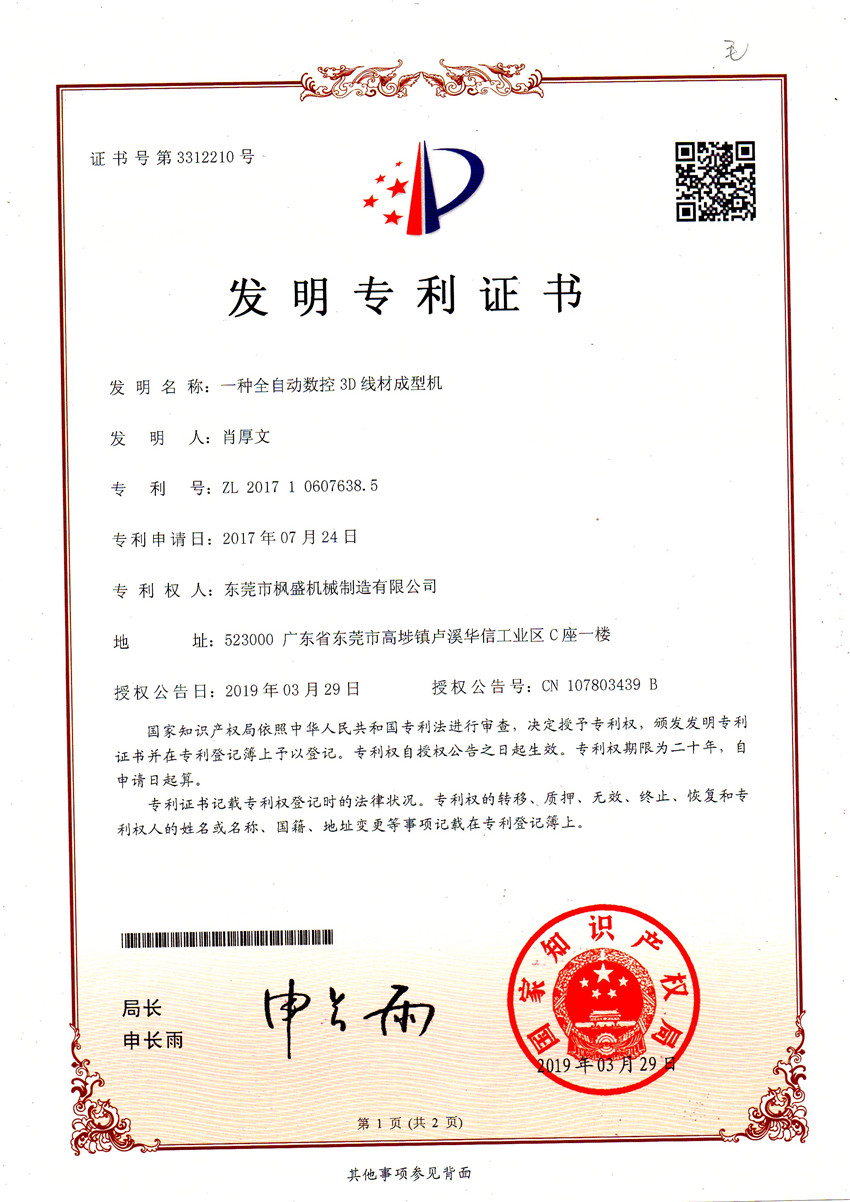

專利號Patent number:201710607638.5
品牌brand: 莞狼/楓盛(FS)
轉頭機的特點是適合做大線經、桿件類金屬線材的產品
The characteristics of the turning head machine are suitable for making large wire, rod like metal wire products.
簡述Brief description:生產線經3.0-8.0mm。the production line passes 3.0-8.0mm.

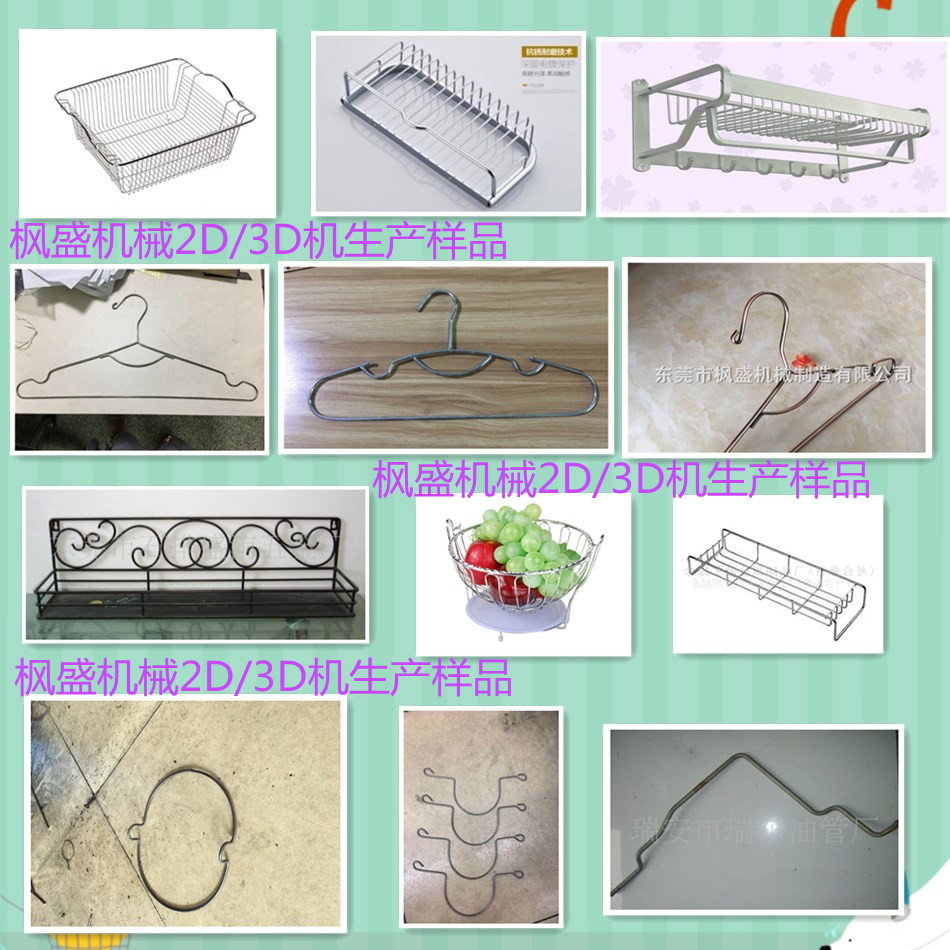

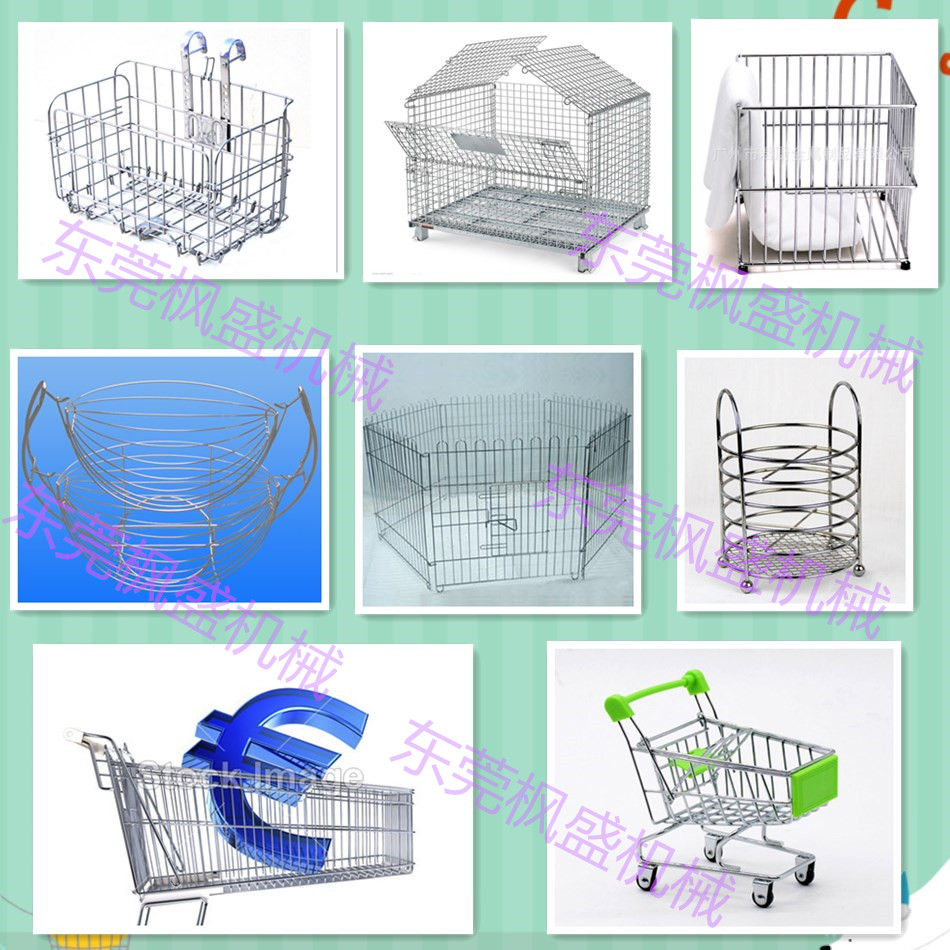

適用于:汽車連接桿、座椅骨架等零部件和工藝品、衛廚配件、超市貨架,家具座椅,園林工具等3-8mm線徑配件折彎成型。
Applicable to: automobile connecting rod, seat frame and other parts and crafts
Kitchen accessories, supermarket shelves, furniture seats, garden tools, etc. 3-8mm
Wire diameter fittings are bent and formed.
楓盛轉頭線材成型機FS-DG203-08技術參數
Technical parameters of Fengsheng wire rod forming machine fs-dg203-08
序號 |
類型type |
詳細參數Detailed parameters |
1 |
設備型號Equipment type |
FS-DG203-08 |
2 |
加工線經規格Machining diameter |
Φ3-Φ8mm(抗拉強度tensile strength≤500N,含Q195/Q235) |
3 |
控制軸數Number of control axes |
5軸 |
4 |
轉臂電機功率Arm motor |
3.8KW |
5 |
送線電機功率Wire feeder motor |
4.5KW-7.5KW |
6 |
外模轉動電機功率Bending motor |
2.3KW |
7 |
升降電機功率Lifting motor |
1.2KW |
8 |
切刀電機功率Cutter motor |
1.5KW |
9 |
最大送線速度Maximum delivery speed |
90m/min |
10 |
送線精度Wire feeding accuracy |
300mm±0.3 |
11 |
自動送線架最大承重Maximum load of automatic wire feeder |
500Kg-3000Kg |
12 |
自動送線架圓盤直徑Diameter of disc of automatic wire feeder |
φ1.1-1.5m |
13 |
自動送線架電機功率Motor power of automatic wire feeder |
1.5KW-2.2KW |
14 |
主機電壓Host voltage |
AC380V(±20V) |
15 |
主機器重量Mainframe weight |
2700kg |
16 |
主機器尺寸Main machine size |
3000mm X 2000mm X 1900mm(L×W×H) |
17 |
自動送線架重量Weight of automatic wire feeder |
300Kg-800kg |
轉頭線材成型機FS-DG203-08特點及優勢
Features and advantages of fs-dg203-08
1、 結構精巧,運行快速,采用先進成型技術,生產精度高,穩定性好;.
It has the advantages of exquisite structure, fast operation, advanced forming technology, high production precision and good stability;
2、本機工作頭能實現360度旋轉,實現線材不轉,達到線材立體成型的設備,本機送線和轉頭既分離又結合,實現轉頭時不轉線,使生產更穩定、精準;
The working head of this machine can realize 360 degree rotation, realize the non rotation of wire rod, and achieve the three-dimensional forming of wire rod, The wire feeding and turning head of the machine are separated and combined to realize no turning of the wire when turning the head, so as to make the production more stable and accurate;
3、可以實現5軸同步運動,電腦開機、關機速度快、操作簡單方便。電腦界面可以邊生產邊調速邊改程序;
It can realize 5-axis synchronous movement, and the computer can be turned on and off quickly, and the operation is simple and convenient. The computer interface can adjust the speed while producing and change the program;
4、軸承、齒輪等重要零部件采用高精度細磨的進口配件,設備運行平穩、可靠、噪音低、精度更高,可以做2.0-8.0 mm 線徑范圍內的線材成型產品,誤差降到±0.3 mm;
Imported accessories with high precision and fine grinding are used for important parts such as bearings and gears. The equipment runs stably, reliably, with low noise and higher precision. It can be used for wire forming products within the wire diameter range of 2.0-8.0mm, with the error reduced to ±0.3mm;
5、伺服電機采用進口高速電機,生產速度高于國內同類產品30%以上;
Servo motor adopts imported high-speed motor, and its production speed is more than 30% higher than that of domestic similar products;
6、本機可實現邊生產邊調速邊改程序,操作調試方便,最快速、最慢速折角,角度無變化;This machine can adjust the speed and change the program at the same time of production. It is convenient for operation and debugging. It has the fastest and slowest angle bending and no change in angle;
7、可連入互聯網,通過手機實現遠程控制,售后服務更方便;
It can connect to the Internet, realize remote control through mobile phone, and make after-sales service more convenient。
8、本公司自行研發、生產、銷售,有完善的售后服務體系:本公司的產品實現免費保修一年,本公司用戶免費提供技術培訓支持!享受終身維護和升級!廣東省范圍內24小時能內反饋和處理維修,省外48小時反饋和處理維修。
The company's own research and development, production, sales, a perfect after-sales service system: the company's products to achieve free warranty for one year, the company's users to provide free technical training support! Enjoy lifetime maintenance and upgrades! Guangdong Province can feedback and deal with the maintenance within 24 hours, and outside Guangdong Province can feedback and deal with the maintenance within 48 hours。
